Usage

Using transformations is easy. Simply compose them:

tfm = Rotate(10) |> ScaleRatio((0.7,0.1,1.2)) |> FlipX{2}() |> Crop((128, 128))
DataAugmentation.CroppedProjectiveTransform{DataAugmentation.ComposedProjectiveTransform{Tuple{Rotate{2, Type{Rotations.RotMatrix{2, Float64, L} where L}, Distributions.Uniform}, ScaleRatio{3}, FlipDim{2}}}, Tuple{Crop{2, DataAugmentation.FromOrigin}}}(DataAugmentation.ComposedProjectiveTransform{Tuple{Rotate{2, Type{Rotations.RotMatrix{2, Float64, L} where L}, Distributions.Uniform}, ScaleRatio{3}, FlipDim{2}}}((Rotate{2, Type{Rotations.RotMatrix{2, Float64, L} where L}, Distributions.Uniform}(Distributions.Uniform{Float64}(a=-10.0, b=10.0)), ScaleRatio{3}((0.7, 0.1, 1.2)), FlipDim{2}(2))), (Crop{2, DataAugmentation.FromOrigin}((128, 128), DataAugmentation.FromOrigin()),))

Projective transformations

DataAugmentation.jl has great support for transforming spatial data like images and keypoints. Most of these transformations are projective transformations. For our purposes, a projection means a mapping between two coordinate spaces. In computer vision, these are frequently used for preprocessing and augmenting image data: images are randomly scaled, maybe flipped horizontally and finally cropped to the same size.

This library generalizes projective transformations for different kinds of image and keypoint data in an N-dimensional Euclidean space. It also uses composition for performance improvements like fusing affine transformations.

Unlike mathematical objects, the spatial data we want to transform has spatial bounds. For an image, these bounds are akin to the array size. But keypoint data aligned with an image has the same bounds even if they are not explicitly encoded in the representation of the data. These spatial bounds can be used to dynamically create useful transformations. For example, a rotation around the center or a horizontal flip of keypoint annotations can be calculated from the bounds.

Often, we also want to crop an area from the projected results. By evaluating only the parts of a projection that fall inside the cropped area, a lot of unnecessary computation can be avoided.

Projective transformations include:

  1. Affine transformations
  2. Crops

Affine transformations

Affine transformations are a subgroup of projective transformations that can be composed very efficiently: composing two affine transformations results in another affine transformation. Affine transformations can represent translation, scaling, reflection and rotation. Available Transforms are:

DataAugmentation.FlipDim — Type
FlipDim{N}(dim)

Reflect N dimensional data along the axis of dimension dim. Must satisfy 1 <= dim <= N.

Examples

tfm = FlipDim{2}(1)
source
DataAugmentation.FlipX — Type
FlipX{N}()

Flip N dimensional data along the x-axis. 2D images use (r, c) = (y, x) convention such that x-axis flips occur along the second dimension. For N >= 3, x-axis flips occur along the first dimension.

source
DataAugmentation.FlipY — Type
FlipY{N}()

Flip N dimensional data along the y-axis. 2D images use (r, c) = (y, x) convention such that y-axis flips occur along the first dimension. For N >= 3, y-axis flips occur along the second dimension.

source
DataAugmentation.Reflect — Type
Reflect(γ)
Reflect(distribution)

Reflect 2D spatial data around the center by an angle chosen at uniformly from [-γ, γ], an angle given in degrees.

You can also pass any Distributions.Sampleable from which the angle is selected.

Examples

tfm = Reflect(10)
source
DataAugmentation.Rotate — Type
Rotate(γ)
Rotate(distribution)
Rotate(α, β, γ)
Rotate(α_distribution, β_distribution, γ_distribution)

Rotate spatial data around its center. Rotate(γ) is a 2D rotation by an angle chosen uniformly from [-γ, γ], an angle given in degrees. Rotate(α, β, γ) is a 3D rotation by angles chosen uniformly from [-α, α], [-β, β], and [-γ, γ], for X, Y, and Z rotations.

You can also pass any Distributions.Sampleable from which the angle is selected.

Examples

tfm2d = Rotate(10)
apply(tfm2d, Image(rand(Float32, 16, 16)))

tfm3d = Rotate(10, 20, 30)
apply(tfm3d, Image(rand(Float32, 16, 16, 16)))
source
DataAugmentation.RotateX — Function
RotateX(γ)
RotateX(distribution)

X-Axis rotation of 3D spatial data around the center by an angle chosen uniformly from [-γ, γ], an angle given in degrees.

You can also pass any Distributions.Sampleable from which the angle is selected.

source
DataAugmentation.RotateY — Function
RotateY(γ)
RotateY(distribution)

Y-Axis rotation of 3D spatial data around the center by an angle chosen uniformly from [-γ, γ], an angle given in degrees.

You can also pass any Distributions.Sampleable from which the angle is selected.

source
DataAugmentation.RotateZ — Function
RotateZ(γ)
RotateZ(distribution)

Z-Axis rotation of 3D spatial data around the center by an angle chosen uniformly from [-γ, γ], an angle given in degrees.

You can also pass any Distributions.Sampleable from which the angle is selected.

source
DataAugmentation.ScaleKeepAspect — Type
ScaleKeepAspect(minlengths) <: ProjectiveTransform

Scales the shortest side of item to minlengths, keeping the original aspect ratio.

Examples

using DataAugmentation, TestImages
image = testimage("lighthouse")
tfm = ScaleKeepAspect((200, 200))
apply(tfm, Image(image))
source
DataAugmentation.WarpAffine — Type
WarpAffine(σ = 0.1) <: ProjectiveTransform

A three-point affine warp calculated by randomly moving 3 corners of an item. Similar to a random translation, shear and rotation.

source
DataAugmentation.Zoom — Type
Zoom(scales = (1, 1.2)) <: ProjectiveTransform
Zoom(distribution)

Zoom into an item by a factor chosen from the interval scales or distribution.

source

Crops

To get a cropped result, simply compose any ProjectiveTransform with

Color transformations

DataAugmentation.jl currently supports the following color transformations for augmentation:

DataAugmentation.AdjustBrightness — Type
AdjustBrightness(δ = 0.2)
AdjustBrightness(distribution)

Adjust the brightness of an image by a factor chosen uniformly from f ∈ [1-δ, 1+δ] by multiplying each color channel by f.

You can also pass any Distributions.Sampleable from which the factor is selected.

Pixels are clamped to [0,1] unless clamp=false is passed.

Example

using DataAugmentation, TestImages

item = Image(testimage("lighthouse"))
tfm = AdjustBrightness(0.2)
titems = [apply(tfm, item) for _ in 1:8]
showgrid(titems; ncol = 4, npad = 16)
source
DataAugmentation.AdjustContrast — Type
AdjustContrast(factor = 0.2)
AdjustContrast(distribution)

Adjust the contrast of an image by a factor chosen uniformly from f ∈ [1-δ, 1+δ].

Pixels c are transformed c + μ*(1-f) where μ is the mean color of the image.

You can also pass any Distributions.Sampleable from which the factor is selected.

Pixels are clamped to [0,1] unless clamp=false is passed.

Example

using DataAugmentation, TestImages

item = Image(testimage("lighthouse"))
tfm = AdjustContrast(0.2)
titems = [apply(tfm, item) for _ in 1:8]
showgrid(titems; ncol = 4, npad = 16)
source

Stochastic transformations

When augmenting data, it is often useful to apply a transformation only with some probability or choose from a set of transformations. Unlike in other data augmentation libraries like albumentations, in DataAugmentation.jl you can use wrapper transformations for this functionality.

  • Maybe(tfm, p = 0.5) applies a transformation with probability p; and
  • OneOf([tfm1, tfm2]) randomly selects a transformation to apply.
DataAugmentation.OneOf — Type
OneOf(tfms)
OneOf(tfms, ps)

Apply one of tfms selected randomly with probability ps each or uniformly chosen if no ps is given.

source

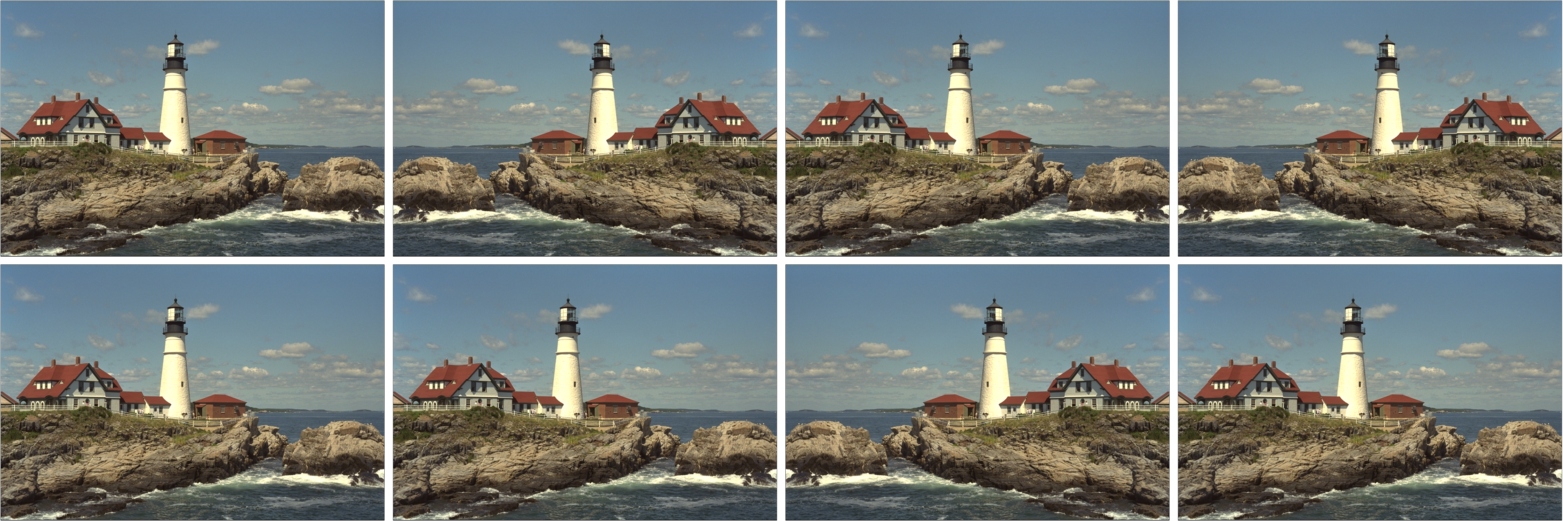

Let's say we have an image classification dataset. For most datasets, horizontally flipping the image does not change the label: a flipped image of a cat still shows a cat. So let's flip every image horizontally half of the time to improve the generalization of the model we might be training.

using DataAugmentation, TestImages
item = Image(testimage("lighthouse"))
tfm = Maybe(FlipX{2}())
titems = [apply(tfm, item) for _ in 1:8]
showgrid(titems; ncol = 4, npad = 16)
Example block output
DataAugmentation.ImageToTensor — Type
ImageToTensor()

Expands an Image{N, T} of size (height, width, ...) to an ArrayItem{N+1} with size (width, height, ..., ch) where ch is the number of color channels of T.

Supports apply!.

Examples

{cell=ImageToTensor}

using DataAugmentation, Images

h, w = 40, 50
image = Image(rand(RGB, h, w))
tfm = ImageToTensor()
apply(tfm, image) # ArrayItem in WHC format of size (50, 40, 3)
source
